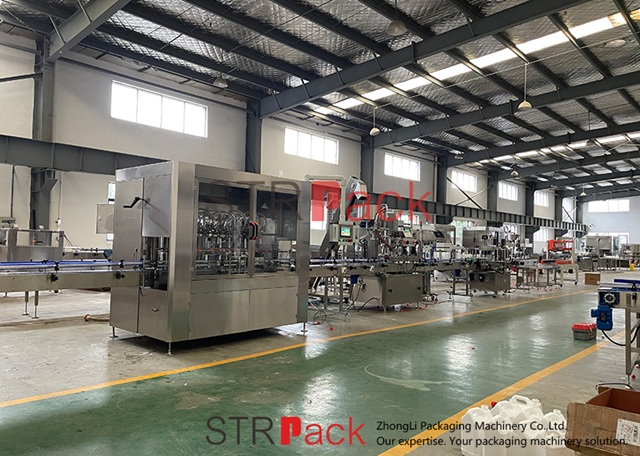

Linear Servo Piston Filling, Capping & Labeling Line Apr 20 , 2026

Linear Servo Piston Filling, Capping & Labeling Line for liquid fertilizer

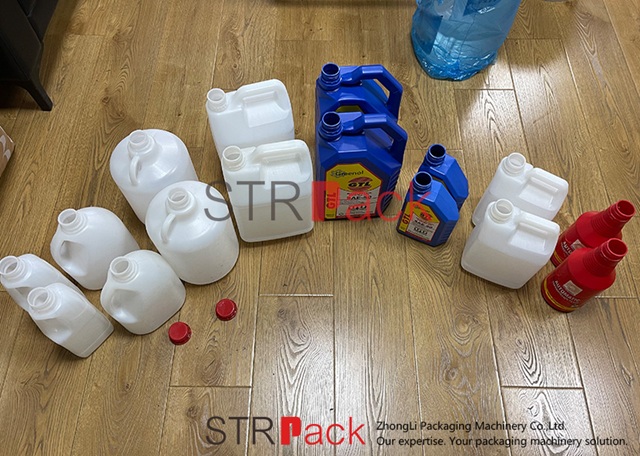

Suitable for all kinds of liquid/viscous products in daily chemical and agricultural fields.Household washing and cleaning products (such as laundry detergent, dish soap, hand soap, bathroom cleaner, fabric softener, multi-purpose cleaner) and liquid fertilizer.

Brief Introduction

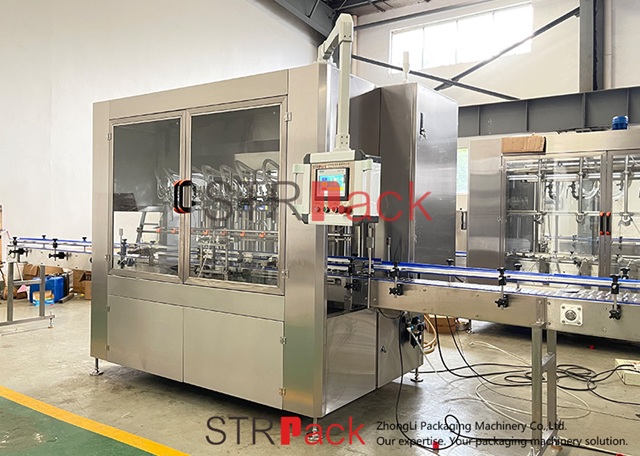

This series of servo piston filling machines is high-tech equipment controlled by PLC, with photoelectric detection and pneumatic actuation.

It is suitable for flowable fluids such as liquid fertilizers, pesticides and other chemical liquids.

Driven by servo motors, the dosing system ensures highly accurate filling with stable piston positioning. Slow-speed filling near the target volume effectively prevents liquid splashing.

All operations are user-friendly, with filling parameters easily set via the touchscreen. The machine is available in 4/6/8/10/12/16 heads to meet various output requirements.

A liquid receiving tray is installed under the nozzles to collect potential leakage. All product-contact parts are made of 316 stainless steel for excellent corrosion resistance to chemicals.

The hopper is equipped with a level sensor for automatic material feeding. The dosing system features a clean-in-place (CIP) function, allowing easy cleaning of thin liquids without disassembling the cylinder.

Application:

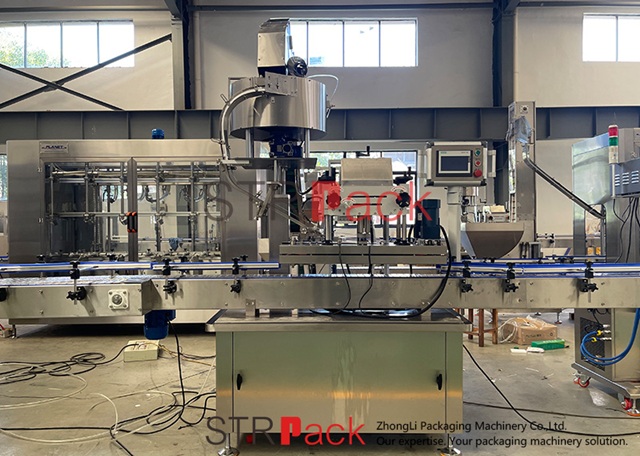

This machine is designed to close screw type caps such as Trigger Spray Cap, Pump Cap, Push-pull Cap, Snap Hinge Cap and Sport Push-pull Cap.

Trigger cap, pump cap feeding have to be done by hand.

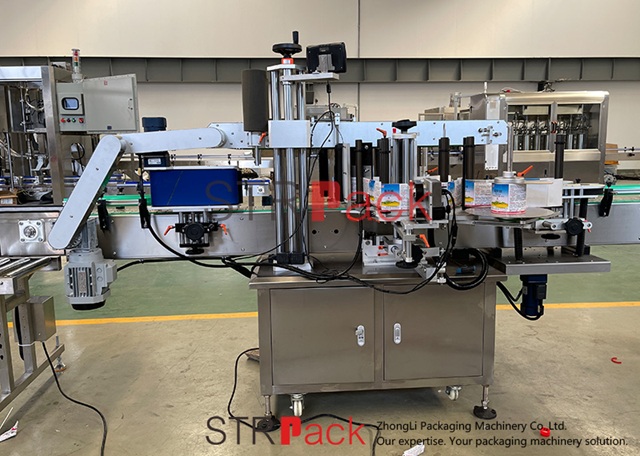

STL-200 automatic self-adhesive front and back labeling machine is economical, and easy to operate, equipped with HMI touch screen & PLC Control System. Built in microchip makes fast and easy adjustment and changeover . This automatic labeling system is ideal for flat and square container with front and back side labeling.

STL-200 fully automatic self-adhesive front and back labeling machine id widely suitable for foodstuff, cosmetic, pharmaceutical, pesticide and other industries. It is single and double side labeling for flat, square and round bottle which volume below 1L. Automatic controlled by computer (PLC)easy operating.
